Blue Star is our featured brand of claw, folding, plow and wing anchors.

Azure Marine stocks stainless steel versions of all Blue Star anchors (galvanized anchors are available for quantity orders).

All Blue Star stainless steel anchors are made with 316 stainless steel, which is more resistant to corrosion than the less expensive "304" grade of stainless steel (some factories even mix 304 and 316 in the same product).

(click on one of these photos to see that style on this page)

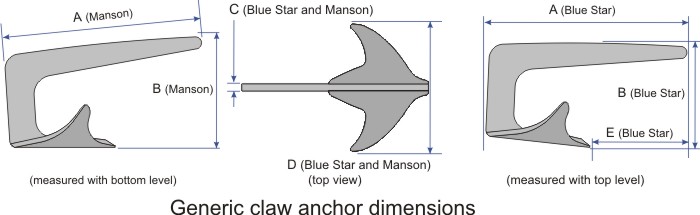

"Claw" Anchors are an excellent design, patterned on the "Bruce" anchor designed for North Sea use. They respond well to changes in current and wind, set and reset well, and work well in bow rollers.

Always use your judgement and experience making your final choice.  Many factors can influence anchoring in real world situations.  These charts are guides only.

(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Blue Star Stainless Steel 5.5 pound claw anchor  0 feet -
10 feet
5.5 lbs. /
2.5 kg
$95.00
Qty:
0lbs N/A  14 1/4"  7 1/4"   3/8"  9 1/2"  7 1/4"
  Blue Star Stainless Steel 10 pound claw anchor  19 feet -
23 feet
10 lbs. /
4.5 kg
$173.00
Qty:
0lbs  1/4"  18"  7 1/2"   5/8"  12"  9 1/2"
  Blue Star Stainless Steel 17 pound claw anchor  22 feet -
30 feet
17 lbs. /
7.7 kg
$270.00
Qty:
0lbs  5/16"  N/A  N/A  N/A  N/A  N/A
  Blue Star Stainless Steel 22 pound claw anchor  29 feet -
35 feet
22 lbs. /
10 kg
$355.00
Qty:
0lbs  5/16"  N/A  N/A  N/A  N/A  N/A
  Blue Star Stainless Steel 33 pound claw anchor  34 feet -
40 feet
33 lbs. /
15 kg
$760.00
Qty:
0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  Blue Star 44 pound galvanized claw anchor  41 feet -
47 feet
44.1 lbs. /
20 kg
$115.00
$91.94

Qty:
0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  Blue Star Stainless Steel 66 pound claw anchor  46 feet -
63 feet
66 lbs. /
30 kg
$1139.00
Qty:
0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  Blue Star Stainless Steel 110 pound claw anchor  62 feet -
92 feet
110 lbs. /
50 kg
$1921.00
Qty:
0lbs N/A  N/A  N/A  N/A  N/A  N/A

s use your judgement and experience making your final choice.  Many factors can influence anchoring in real world situations.  These charts are guides only.

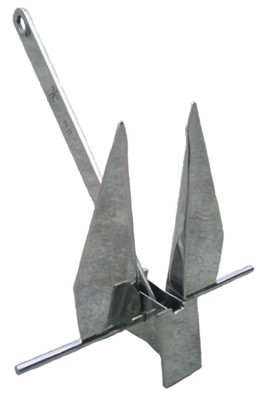

Based on the tried and true fluke or Danforth style anchor.

Our solid stainless steel models are a great upgrade for boats already configured for this style anchor.



(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Blue Star Stainless Steel 8 pound fluke anchor  16 feet -
25 feet
0 lbs. /
0 kg
$178.00
Qty:
0lbs N/A  22"  N/A  15"  N/A  N/A
  Blue Star Stainless Steel 12 pound fluke anchor  21 feet -
30 feet
0 lbs. /
0 kg
$256.00
Qty:
0lbs N/A  26"  N/A  18 1/2"  N/A  N/A
  Blue Star Stainless Steel 20 pound fluke anchors  26 feet -
37 feet
0 lbs. /
0 kg
$355.00
Qty:
0lbs N/A  30"  N/A  21 1/2"  N/A  N/A
  Blue Star Stainless Steel 35 pound fluke anchor  33 feet -
44 feet
0 lbs. /
0 kg
$539.00
Qty:
0lbs N/A  35 1/2"  16"  27"  3 3/4"  17"
  Blue Star Stainless Steel 60 pound fluke anchor  39 feet -
52 feet
0 lbs. /
0 kg
$990.00
Qty:
0lbs N/A  41"  23"  31"  4 1/2"  20"

Folding Anchors are great, easy-to-store anchors for hand deployment.  Our stainless steel models won't leave rust in the bottom of your Jetski, dinghy or boat.

(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths Weight Azure Marine price Ordering Dimensions
A B

  Blue Star 3 pound stainless steel folding anchor  0 feet -
8 feet
3 lbs. /
1.3 kg
$99
Qty:
N/A  N/A
  Blue Star 5 pound stainless steel folding anchor  0 feet -
10 feet
5 lbs. /
2.2 kg
$132
Qty:
N/A  N/A
  Blue Star 9 pound stainless steel folding anchor  8 feet -
16 feet
9 lbs. /
4 kg
$178
Qty:
N/A  N/A
  Blue Star 13 pound stainless steel folding anchor  10 feet -
18 feet
13 lbs. /
5.9 kg
$227
Qty:
N/A  N/A


"Plow" Anchors are a versatile and popular style, similar to the "CQR" anchor.  They offer very good holding power and an excellent response to changes in wind/current.  A weighted toe helps them penetrate the seabed.  Plow anchors are usually better than fluke anchors in rocky or grassy bottoms.

Remember that the plow is on a pivot and on some boats may move when under way.

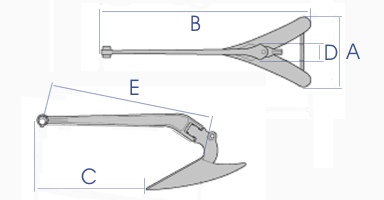

(Blue Star plow anchor dimensions)
(not to scale - for reference only)

(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Stainless Steel 10 pound plow anchor  0 feet -
16 feet
10 lbs. /
4.5 kg
$180.00
Qty:
0lbs  1/4"  N/A  N/A  N/A  N/A  N/A
  stainless steel 16.5 pound plow anchor  10 feet -
20 feet
16.5 lbs. /
7.5 kg
$295.00
Qty:
0lbs  5/16"  N/A  N/A  N/A  N/A  N/A
  Galvanized 20 pound plow anchor  12 feet -
24 feet
20 lbs. /
9 kg
$134
$84.99

Qty:
0lbs  5/16"  10"  27"  13 1/2"  2"  23"
  stainless steel 20 pound plow anchor  12 feet -
24 feet
20 lbs. /
9 kg
$300.00
Qty:
0lbs  5/16"  10 1/2"  33 1/2"  18"  2"  26"
  stainless steel 27 pound plow anchor  19 feet -
35 feet
26.5 lbs. /
12 kg
$445.00
Qty:
0lbs  5/16"  11 1/2"  33 1/2"  17 1/2"  2"  25 1/2"
  Galvanized 33 pound plow anchor  26 feet -
42 feet
33 lbs. /
15 kg
$217
Qty:
0lbs  5/16"  12"  34 1/2"  18"  2 9/16"  29"
  stainless steel 33 pound plow anchor  26 feet -
42 feet
33 lbs. /
15 kg
$527.00
Qty:
0lbs  5/16"  11 1/2"  31 1/2"  14 1/2"  2 1/16"  23"
  stainless steel 44 pound plow anchor  35 feet -
52 feet
44 lbs. /
20 kg
$812.00
Qty:
0lbs  3/8"  12 1/2"  36"  15"  2 1/2"  24 1/2"
  Galvanized 60 pound plow anchor  46 feet -
63 feet
59.5 lbs. /
27 kg
$403
Qty:
0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  stainless steel 60 pound plow anchor  46 feet -
63 feet
59.5 lbs. /
27 kg
$1056.00
Qty:
0lbs  3/8"  N/A  N/A  N/A  N/A  N/A
  Galvanized 75 pound plow anchor  53 feet -
71 feet
75 lbs. /
34 kg
$504
Qty:
0lbs  1/2"  N/A  N/A  N/A  N/A  N/A
  stainless steel 75 pound plow anchor  53 feet -
71 feet
75 lbs. /
34 kg
$1487.00
Qty:
0lbs  3/8"  19"  48"  24"  2 7/8"  34"
  Blue Star stainless stel 110 pound plow anchor  66 feet -
84 feet
110 lbs. /
50 kg
$2113.00
Qty:
0lbs N/A  N/A  N/A  N/A  N/A  N/A
  Blue Star stainless steel 132 pound plow anchor  72 feet -
91 feet
132 lbs. /
60 kg
$2597.00
Qty:
0lbs N/A  N/A  N/A  N/A  N/A  N/A

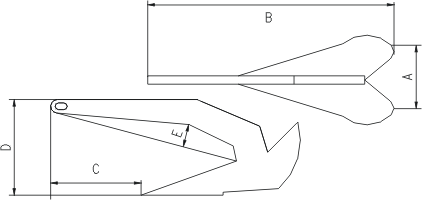

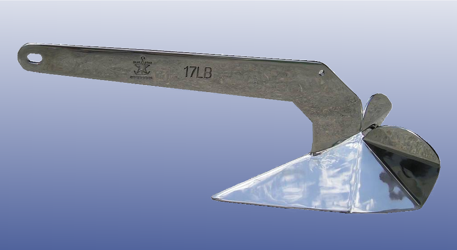

"Wing" Anchors are strong, deep setting anchors, with a weighted toe to help penetrate the seabed.

The flat surfaces make the stainless steel models really beautiful and the straight shank is compatible with a broad range of bow rollers.

(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E

  Blue Star Stainless Steel 10 pound wing anchor  15 feet -
23 feet
10 lbs. /
4.5 kg
$181.00
Qty:
8100lbs  1/4"  8 1/4"  22"  8 5/8"  9 9/16"  2 3/16"
  Blue Star Stainless Steel 17 pound wing anchor  26 feet -
35 feet
17 lbs. /
7.7 kg
$286.00
Qty:
13200lbs  5/16"  9"  24 3/8"  9 5/8"  11 3/16"  2 9/16"
  Blue Star Stainless Steel 22 pound wing anchor  31 feet -
41 feet
22 lbs. /
10 kg
$344.00
Qty:
13200lbs  5/16"  10 3/8"  27 1/2"  11"  11 7/8"  2 15/16"
  Blue Star Stainless Steel 33 pound wing anchor  40 feet -
50 feet
33 lbs. /
15 kg
$546.00
Qty:
13200lbs  5/16"  11 3/8"  29 7/8"  12 3/16"  13 3/16"  3 1/8"
  Blue Star Stainless Steel 44 pound wing anchor  46 feet -
57 feet
44 lbs. /
20 kg
$916.00
Qty:
18500lbs  3/8"  12 3/4"  32 1/4"  13 3/8"  14 5/16"  3 1/2"
  Blue Star Stainless Steel 66 pound wing anchor  54 feet -
66 feet
66 lbs. /
30 kg
$1343.00
Qty:
18500lbs  3/8"  14 9/16"  38 9/16"  15 5/16"  17 3/16"  3 7/8"
  Blue Star brand 88 pound stainless wing anchor  60 feet -
77 feet
88 lbs. /
40 kg
$1888.00
Qty:
0lbs  3/8"  16"  45"  19 1/2"  19 3/4"  4"
  Blue Star brand 110 pound stainless wing anchor  65 feet -
77 feet
110 lbs. /
50 kg
$2567.00
Qty:
0lbs N/A  N/A  N/A  N/A  N/A  N/A
