Manson anchors are top of the line anchors.  Most qualify as "High Holding Power" anchors and for formal certification (for a fee) , in sizes from 15 to 2,200 pounds.  Both standard and custom sizes and styles are available.

  • Stock is available for many models under 100 pounds

  • Online ordering is now available for Plow (galvanized), Ray (galvanized and stainless steel) and Supreme (galvanized and stainless steel) models

  • Engraving / imprinting of text and/or graphics on the anchor is available

Please  Contact Us  for models and/or sizes not shown on this site

Plow Anchors Ray Anchors Supreme Anchors

The Manson Plow

Originally designed in 1933, Plow (plough) anchors have been proven all over the world providing the best holding in the widest variety of weather and seabed conditions. The plow's versatility and holding power in most circumstances will out perform all other types of anchors if set correctly.  Manson began manufacturing the plow anchor in 1972 and the Manson plow has now become Australasia's anchor of choice - synonymous with safe anchoring. It's built tough to withstand the rigors of the southern ocean, it's respected as the ideal all purpose anchor.

Manson plough anchor

The Manson Plow is certified to Lloyds register of Shipping as a HHP (High Holding Power) anchor. This process involves design approval of the anchor drawings, extreme scrutinising of the manufacturing process and finally, seabed of the anchor in three different soil substrates.


(Plow anchor dimensions)


(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths
(approximate)
Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E F

  15 pound Manson galvanized plow anchor  0 feet -
16 feet
15 lbs. /
6.8 kg
$196.00
Qty:
0lbs N/A  19 1/2"  9"  14 1/4"  2 1/2"  10"  9 3/4"
  20 pound Manson galvanized plow anchor  8 feet -
26 feet
20 lbs. /
9 kg
$261.00
Qty:
0lbs N/A  22 1/2"  10 1/2"  16 1/4"  3 1/2"  8 1/2"  11 1/4"
  25 pound Manson galvanized plow anchor  15 feet -
34 feet
25 lbs. /
11.3 kg
$327.00
Qty:
0lbs N/A  22 1/2"  11"  17"  3 1/2"  9 1/2"  11 1/2"
  30 pound Manson stainless plow anchor  21 feet -
40 feet
30 lbs. /
13.6 kg
$2145
Qty:
0lbs N/A  25 1/4"  11 1/2"  18"  3 3/4"  9 3/4"  N/A
  30 pound Manson galvanized plow anchor  21 feet -
40 feet
30 lbs. /
13.6 kg
$393.00
Qty:
0lbs N/A  25 1/4"  11 1/2"  18"  3 3/4"  9 3/4"  12 1/2"
  35 pound Manson stainless plow anchor  26 feet -
45 feet
35 lbs. /
15.9 kg
$2503
Qty:
0lbs N/A  25 1/4"  12"  18 1/2"  3 3/4"  10 3/4"  N/A
  35 pound Manson galvanized plow anchor  26 feet -
45 feet
35 lbs. /
15.9 kg
$423.00
Qty:
0lbs N/A  25 1/4"  12"  18 1/2"  3 3/4"  10 3/4"  12 1/2"
  40 pound Manson stainless plow anchor  31 feet -
50 feet
40 lbs. /
18.1 kg
$2861
Qty:
0lbs N/A  29"  13 1/4"  19 3/4"  3 1/4"  11 1/2"  N/A
  40 pound Manson plow anchor  31 feet -
50 feet
40 lbs. /
18.1 kg
$508.00
Qty:
0lbs N/A  29"  13 1/4"  19 3/4"  3 1/4"  11 1/2"  13 1/2"
  45 pound Manson stainless plow anchor  34 feet -
54 feet
45 lbs. /
20.4 kg
$3219
Qty:
0lbs N/A  29"  14"  20 1/2"  3 1/2"  12 1/2"  N/A
  45 pound Manson plow anchor  34 feet -
54 feet
45 lbs. /
20.4 kg
$565.00
Qty:
0lbs N/A  29"  14"  20 1/2"  3 1/2"  12 1/2"  13 1/2"
  50 pound Manson stainless plow anchor  38 feet -
58 feet
50 lbs. /
22.7 kg
$3577
Qty:
0lbs N/A  29"  14"  21 1/4"  3 3/4"  13 1/2"  N/A
  50 pound Manson galvanized plow anchor  38 feet -
58 feet
50 lbs. /
22.7 kg
$622.00
Qty:
0lbs N/A  29"  14"  21 1/4"  3 3/4"  13 1/2"  14 3/4"
  60 pound Manson stainless plow anchor  44 feet -
64 feet
60 lbs. /
27.2 kg
$4293
Qty:
0lbs N/A  32 3/4"  15 1/4"  23 1/4"  4 1/4"  14 1/2"  N/A
  60 pound Manson galvanized plow anchor  44 feet -
64 feet
60 lbs. /
27.2 kg
$788.00
Qty:
0lbs N/A  32 3/4"  15 1/4"  23 1/4"  4 1/4"  14 1/2"  15 1/4"
  80 pound Manson stainless plow anchor  54 feet -
75 feet
80 lbs. /
36.3 kg
$5724
Qty:
0lbs N/A  33"  17 1/2"  26 3/4"  4 1/2"  16 1/2"  N/A
  80 pound Manson galvanized plow anchor  54 feet -
75 feet
80 lbs. /
36.3 kg
$1052.00
Qty:
0lbs N/A  33"  17 1/2"  26 3/4"  4 1/2"  16 1/2"  17 1/4"

The Manson Ray

Manson Ray anchor (stainless steel)Inspired by the Bruce Anchor originally designed in 1933 to anchor large oil rigs in the North Sea, the Manson Ray anchors are fabricated not cast to enable exact measurements and slight design modifications. Fabrication also enables a consistent quality of steel used in the manufacturing process.


Manson Ray anchors (galvanized steel)The Manson Ray is certified to Lloyds register of Shipping as an HHP (High Holding Power) anchor. This process involves design approval of the anchor drawings, extreme scrutinising of the manufacturing process and finally, seabed of the anchor in three different soil substrates.

The Ray anchor is a quick set anchor. It's ideal for use in sand, and mud. It usually sets in just the length of the anchor itself.

The most notable of the Manson Ray anchors were the world's largest Stainless Ray anchors (600kg & 400kg) placed on the world's largest sloop Mirabella V.

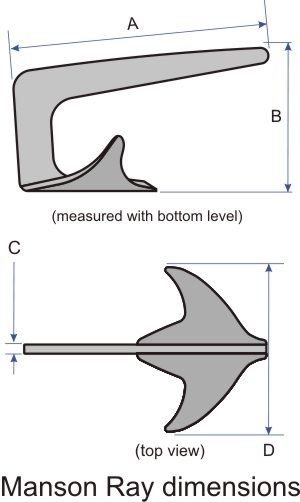

(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths
(approximate)
Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D

  Manson Ray galvanized steel 22 pound Ray anchor  29 feet -
34 feet
22 lbs. /
10 kg
$331.00
Qty:
0lbs N/A  22 1/2"  12 1/2"  N/A  15 1/4"
  Manson Ray stainless steel 22 pound Ray anchor  29 feet -
34 feet
22 lbs. /
10 kg
$1220
Qty:
0lbs N/A  22 1/2"  12 1/2"  N/A  15 1/4"
  Manson Ray galvanized steel 33 pound Ray anchor  33 feet -
41 feet
33 lbs. /
15 kg
$504.00
Qty:
0lbs N/A  26 3/4"  15"  N/A  17 1/2"
  Manson Ray stainless steel 33 pound Ray anchor  33 feet -
41 feet
33 lbs. /
15 kg
$1831
Qty:
0lbs N/A  26 3/4"  15"  N/A  17 1/2"
  Manson Ray galvanized steel 44 pound Ray anchor  40 feet -
49 feet
44 lbs. /
20 kg
$687.00
Qty:
0lbs N/A  28"  15 3/4"  N/A  18 1/4"
  Manson Ray stainless steel 44 pound Ray anchor  40 feet -
49 feet
44 lbs. /
20 kg
$2443
Qty:
0lbs N/A  28"  15 3/4"  N/A  18 1/4"
  Manson Ray galvanized steel 55 pound Ray anchor  48 feet -
56 feet
55 lbs. /
25 kg
$871.00
Qty:
0lbs N/A  28"  15 3/4"  N/A  18 1/4"
  Manson Ray stainless steel 55 pound Ray anchor  48 feet -
56 feet
55 lbs. /
25 kg
$3054
Qty:
0lbs N/A  28"  15 3/4"  N/A  18 1/4"
  Manson Ray galvanized steel 66 pound Ray anchor  55 feet -
63 feet
66 lbs. /
30 kg
$1054.00
Qty:
0lbs N/A  32 1/4"  18"  N/A  21 1/4"
  Manson Ray stainless steel 66 pound Ray anchor  55 feet -
63 feet
66 lbs. /
30 kg
$3666
Qty:
0lbs N/A  32 1/4"  18"  N/A  21 1/4"
  Manson Ray galvanized steel 77 pound Ray anchor  62 feet -
71 feet
77 lbs. /
35 kg
$1237.00
Qty:
0lbs N/A  32"  18"  N/A  21 1/4"
  Manson Ray stainless steel 77 pound Ray anchor  62 feet -
71 feet
77 lbs. /
35 kg
$4278
Qty:
0lbs N/A  32"  18"  N/A  21 1/4"

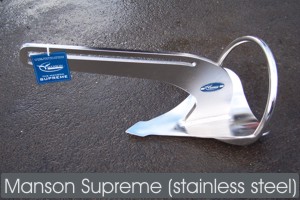

The Manson Supreme

There has been a revolution in anchoring technology.  The new premise is that shaping the anchor in a concave design and utilizing as much surface area as possible will provide a much higher holding power anchor. The concept proved a winning one and derivations on the theme have subsequently formed.

This anchor was designed to  be the highest holding - fastest setting - fixed shank anchor in the world. A surprise bonus design feature was that the anchor was developed with a dual operation shank to enable use in rock and coral seabed types.

The concave nature of the anchor is a relatively new concept. Both concave and convex flukes have their merits and there has traditionally been hesitancy to use a concave shape. This was initially due to their inability to self right. The addition of the roll bar has completely removed this drawback and now this shape is an accepted anchor design.

The Manson Supreme has been reviewed by Lloyds Register of Shipping and has received a SHHP status. The first and only production boat anchor in the world to do so.

(click here for additional technical information)

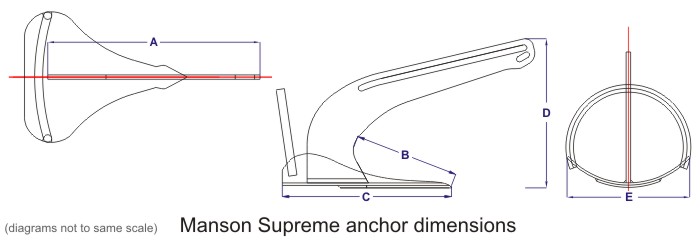

(All measurements approximate; prices subject to change; errors subject to correction)

Item
(Click for more info)
Description Boat Lengths
(approximate)
Weight Azure Marine price Ordering Working Load Chain Size Dimensions
A B C D E F

  Manson 5 pound Supreme anchor (galvanized)  0 feet -
16 feet
5 lbs. /
2.2 kg
$91.00
Qty:
0lbs N/A  13 1/2"  5 1/2"  9 3/4"  8 3/4"  8 1/4"  N/A
  Manson 5 pound Supreme anchor (stainless steel)  0 feet -
16 feet
5 lbs. /
2.2 kg
$362.00
Qty:
0lbs N/A  13 1/2"  5 1/2"  9 3/4"  8 3/4"  8 1/4"  N/A
  Manson 10 pound Supreme anchor (galvanized)  10 feet -
20 feet
10 lbs. /
4.5 kg
$130.00
Qty:
0lbs N/A  17"  7"  12 1/4"  10 3/4"  10 1/4"  N/A
  Manson 10 pound Supreme anchor (stainless steel)  10 feet -
20 feet
10 lbs. /
4.5 kg
$489.00
Qty:
0lbs N/A  17"  7"  12 1/4"  10 3/4"  10 1/4"  N/A
  Manson 15 pound Supreme anchor (galvanized)  18 feet -
25 feet
15 lbs. /
6.8 kg
$174.00
Qty:
0lbs N/A  18 1/2"  7 3/4"  13 3/4"  12 1/4"  11"  N/A
  Manson 15 pound Supreme anchor (stainless steel)  18 feet -
25 feet
15 lbs. /
6.8 kg
$608.00
Qty:
0lbs N/A  18 1/2"  7 3/4"  13 3/4"  12 1/4"  11"  N/A
  Manson 25 pound Supreme anchor (galvanized)  25 feet -
35 feet
25 lbs. /
11.3 kg
$259.00
Qty:
0lbs N/A  21 3/4"  9 1/4"  16 1/4"  14 1/4"  13 3/4"  N/A
  Manson 25 pound Supreme anchor (stainless steel)  25 feet -
35 feet
25 lbs. /
11.3 kg
$998.00
Qty:
0lbs N/A  21 3/4"  9 1/4"  16 1/4"  14 1/4"  13 3/4"  N/A
  Manson 35 pound Supreme anchor (galvanized)  35 feet -
40 feet
35 lbs. /
15.9 kg
$365.00
Qty:
0lbs N/A  24 1/2"  10 1/2"  18 1/4"  16 1/4"  14"  N/A
  Manson 35 pound Supreme anchor (stainless steel)  35 feet -
40 feet
35 lbs. /
15.9 kg
$1372.00
Qty:
0lbs N/A  24 1/2"  10 1/2"  18 1/4"  16 1/4"  14"  N/A
  Manson 45 pound Supreme anchor (galvanized)  40 feet -
45 feet
45 lbs. /
20.4 kg
$461.00
Qty:
0lbs N/A  27"  11 1/2"  20 1/2"  18"  16 1/4"  N/A
  Manson 45 pound Supreme anchor (stainless steel)  40 feet -
45 feet
45 lbs. /
20.4 kg
$1798.00
Qty:
0lbs N/A  27"  11 1/2"  20 1/2"  18"  16 1/4"  N/A
  Manson 60 pound Supreme anchor (galvanized)  45 feet -
55 feet
60 lbs. /
27.2 kg
$632.00
Qty:
0lbs N/A  29 1/2"  12 1/2"  22 1/2"  18 3/4"  17 3/4"  N/A
  Manson 60 pound Supreme anchor (stainless steel)  45 feet -
55 feet
60 lbs. /
27.2 kg
$2399.00
Qty:
0lbs N/A  29 1/2"  12 1/2"  22 1/2"  18 3/4"  17 3/4"  N/A
  Manson 80 pound Supreme anchor (galvanized)  50 feet -
60 feet
80 lbs. /
36.3 kg
$816.00
Qty:
0lbs N/A  33 1/2"  14 1/4"  25 1/2"  22"  19 3/4"  N/A
  Manson 80 pound Supreme anchor (stainless steel)  50 feet -
60 feet
80 lbs. /
36.3 kg
$3201.00
Qty:
0lbs N/A  33 1/2"  14 1/4"  25 1/2"  22"  19 3/4"  N/A
  Manson 100 pound Supreme anchor (galvanized)  55 feet -
70 feet
100 lbs. /
45.4 kg
$1177.00
Qty:
0lbs N/A  35 1/2"  14 1/2"  26 1/2"  22"  21"  N/A
  Manson 100 pound Supreme anchor (stainless steel)  55 feet -
70 feet
100 lbs. /
45.4 kg
$3920.00
Qty:
0lbs N/A  35 1/2"  14 1/2"  26 1/2"  22"  21"  N/A
  Manson 125 pound Supreme anchor (galvanized)  65 feet -
75 feet
125 lbs. /
56.8 kg
$1473.00
Qty:
0lbs N/A  37 3/4"  15 3/4"  28 1/4"  24 1/2"  23 1/4"  N/A
